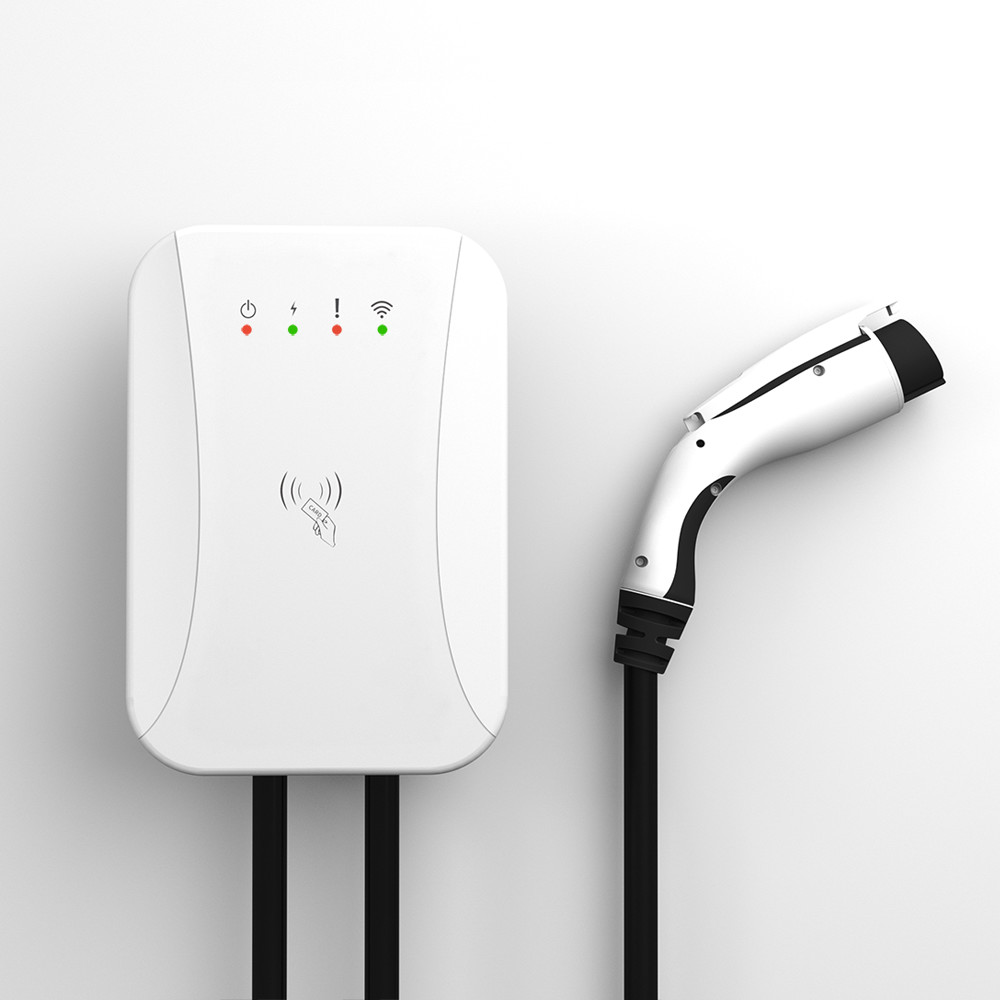

Newable EV Car Charger 22kw 3 phase car charger Type 2 EU satiable

-- Electric ev car charger with type 1 type 2 plug to charge cars.(TESLA needs a adapter.)

-- Screens show ev car charger electricity consumption, current, voltage, hours etc.

-- Managing system for adjusting current, observing charging data and history etc.

-- Build in type B RCD leakage protection: detect all leakages from cars.

-- App control start and stop ev cars charging, make appointment for charging.

-- Self adjustable power to coordinate with ev cars' obc power.

-- customize logo, language, manual, RFID card for ev chargers.

Feature

APP Control

* Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market

Specification

Charging Connector/ plug type	IEC62196-2 /Type 2		SAEJ1772 /Type 1
AC Power input rating	1 phase 220V±15%	3 phase 380V±15%	AC Level 2 240V
AC Power Output Rating	3.5KW /16A	11KW /16A	3.5KW/16A
	7KW/32A	22KW/32A	7KW/32A
	N/A	43KW/63A	10KW.40A
Rated Frequency	50/60HZ
User interface & control
Charging control	Plug and charge √	RFID card √	CMS operate √
Display Screen	4.3inch LCD screen
Wifi connection	Support √	OCPP Protocol	1.6J √	2.0.1 √
Ethernet Interface	LAN(RJ-45) √	APP interface	Support √

Environmental
Storage Temperature	-40 ~ 75℃	Operating Temperature	-30 ~ 55℃
Operating Humidity	Up tp 95%, non-condensing	Altitude	≤2000m
Cooling Method	Natural Cooling
Protection
Over Voltage Protection	√	Under Voltage Protection	√
Over Load Protection	√	Short Circuit Protection	√
Earth Leakage Protection	√	Ground Protection	√
Over-temp Protection	√	Surge Protection	√
RCD	RCCB or Type B	Protection ratings	IP54 ( CE certified)
Wallbox Charger Mechanical
Dimension(H×W×D,mm)	410×260×164	Weight	1 phase :9kg 3 phase:12kg
Charging Cable Length	5m or 7.5m or customized	Enclosure Material	Front-panel: Tempered Glass, Back-cover: Plate Metal
LQM3T Mounting Pole(Optional)
Dimension(H×W×D,mm)	1400×200×100	Weight	＜8kg
Enclosure Material	Metal

WHY US?

1. First, Lekol’s chargers Compatibility with most global Electric Vehicles charging interface. We have the CE, ROHS, REACH certificate for European Market.
2. Lekol has a series of EV chargers to meet different customer’s needs. such as for home use or for commercial.
3. Lekol is the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. Lekol has strong R&D Capability, OEM and ODM are available.
4. How to promise the quality? First, Lekol produce the chargers in strict accordance with quality management system standard
(ISO9000). Second, in the production, we will age and test the EV CHARGER 3times; Third, through the Digital Factory,
production can be traced and visualized, so as to ensure the stability of products.
5. Our mission is: Create higher value for customers with innovative products and services. Come and be our customers!

 Beijing Lekol Technology Co., LTD.

Lekol enables you to bring energy-efficient AC/DC EV charger designs to life, with our highly efficient components  and in-depth technical support. We cover power ranges from kilowatt to megawatt in our broad portfolioof high-quality power semiconductors, microcontrollers, gate drivers and security, and safety authentication solutions.

With the growing number of electric vehicles (EVs), which are in some markets  becoming viable alternatives to traditional internal combustion engine vehicles, the demand for enhanced semiconductor solutions for charging stations increases too. Curently, all eyes are on Chiona where EVs have gained traction in the rapidly expanding middle class, while Europe suit soon.

We concentrate on researching and developing innovative, sustainable and new technology to make our products more energy saving. Along with our standard products we als ooffer customization service upon the request in order to help our customers build their own local brands.

Lekol--An industry leading manufacturer of offers delivering sustainable value . Worldwide availability of our charging station and service offers is the best proof of our long-term engagement.

Lekol offers a complete solution for residentials commercial and public plug-in electric vehicle charging: the Lekol line of electric cehicle supply equipment and accessories . Our Lekol products are compliant with all industry standards and compatible with all major auto manufacturers' electric vehicles ( SAE J1772 TM compliant).
